BM42 DS

modern world cruising pilot salon yacht with lifting or fixed keel

DIMENSIONS
L (Hull) 12.85m
LWL 12.40m
Beam 4.10m
D (Alt.) 1.10/2.80m
Displ.11.0 t

SAILS
Main 57.0 m²
Genoa 50.0 m²
St Jib 23.0 m²
Code 0: 90 m²
Gennaker: 150 m²

FEATURES
- stiff, fast cruiser
- fixed or lifting keel
- go anywhere draft
- pilot salon
- 2nd inside steering
- pilot berth
- protected cockpit with cuddy
- opt. 500l fuel
- solar panel on roof
- easy to handle
- large shower room
- spacy lockers
- Aluminium hull l
- opt. 2x10KW twin e-motors

contact...

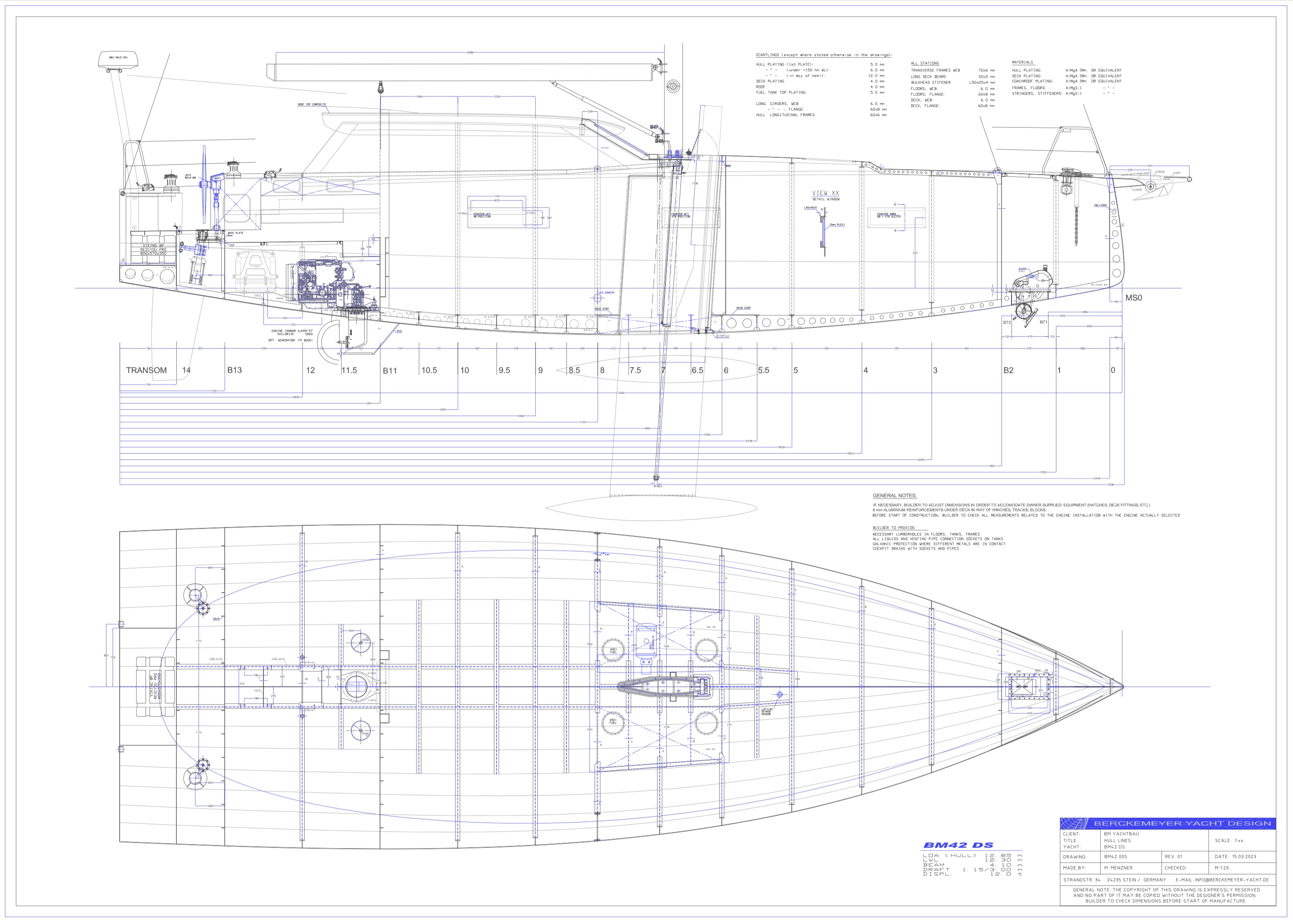

Martin Menzner had the idea of creating a smaller version of the successful BM53 DS Design. He then developed the concept, design and all construction plans of this new BM42 DS.

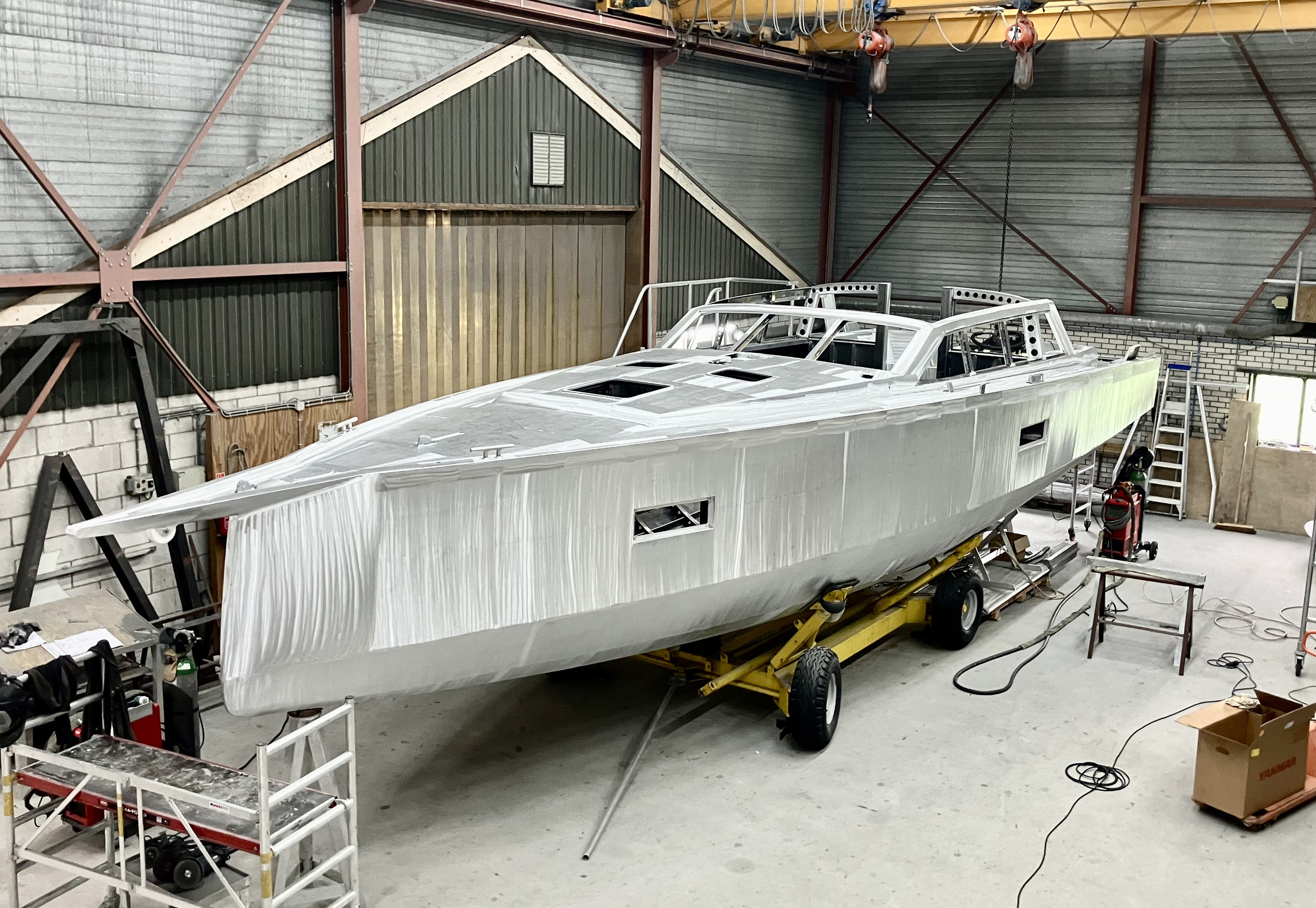

Once again, the aluminum hull was built to an reference standard in close collaboration with Folmer Jachtbouw. The first yacht was then fitted out at Pure Yachts, where the boat is currently being offered as Pure 42.

The result is a typical BM-Yacht. Please contact us for further info of your individual BM42 DS.
